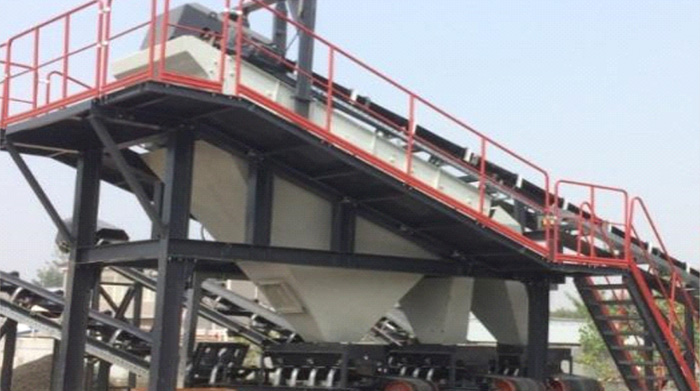

RTZS120 Series RAP Crushing & Screening Plant
RTZS120 Series RAP Crushing & Screening Plant.jpg

RTZS120 Series RAP Crushing & Screening Plant

Due to the fact that most of RAP have not been layered, classified, or have been stacked for a long time, RAP will form large blocks after bonding. Therefore, it is necessary to perform preliminary screening and crushing treatment on RAP to ensure their grading and reduce variability, RTZS120 adopts a circular vibrating screen structure and a roller flexible crushing method, which can divide materials into two or three grades.

    Contact us
    product details
    product description

    Product Parameters

    Model  RT120ZS RT120ZS
    2 particle sizes 3 particle sizes
    Rated productivity(t/h) 120 120
    Feeding particle size <80 <80
    Overall power (kW) 55 62
    Residue <10% <10%
    Cold hopper volume(m³) 12 12
    Screen size(m) 4.8x1.8 4.8x1.8
    Crushing capacty of toothed roler crusher(t/h)  40 40
    Partide size of mixed material(mm) 0-13,13-26 0-8,8-16,16-26

    Product characteristics

    01

    Roller type flexible crushing mode, preventing secondary crushing of recycled materials and ensure the original grading to the greatest extent.

    02

    Screening adopts a circular vibrating screen structure, and the circular trajectory screening is suitable for recycled materials with viscosity.

    description2

    PRODUCT INTRODUCTION

    Introduction To Functional Modules Of Screening & Crushing Equipment

    RTZS120 Series RAP Crushing & Screening Plant (1)

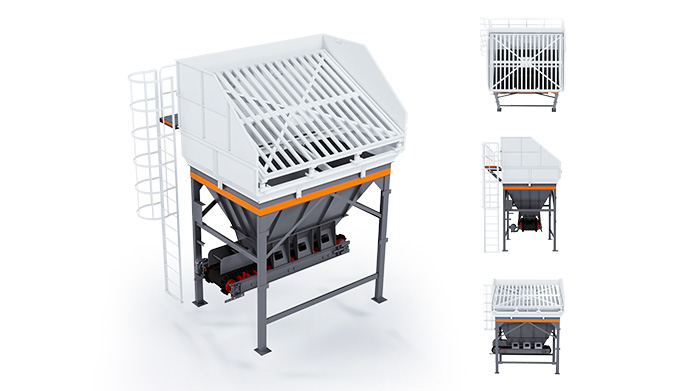

    Cold feeding system

    Single silo volume is 12m3, inner vibrating type, big vibration amplitude, ensuring a smooth material discharge.

    RTZS120 Series RAP Crushing & Screening Plant (2)

    Screening system

    Circular vibrating screen, double bearing eccentric block type circular vibrating screen, screen box for circular trajectory screening action, especially suitable for recycled materials with viscosity.

    RTZS120 Series RAP Crushing & Screening Plant (3)

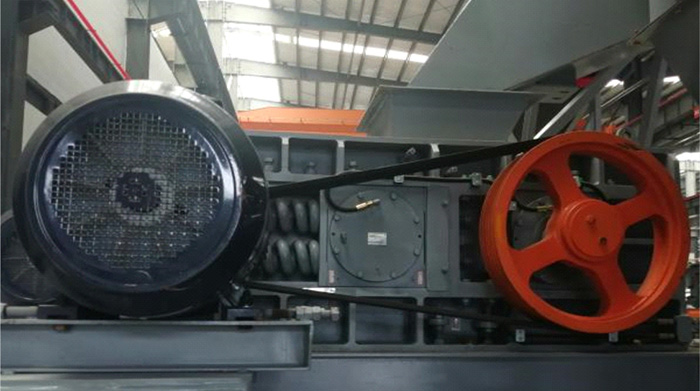

    Crushing system Roll crusher

    The mixer crushing teeth of the roller crusher are arranged in a cross pattern, spring tension device is equipped to one of the crushing roller to adjust the material productivity & granularity after crushing. Tow sets are driven independently with sufficient power.
