RTF450M Modular Impact Crushing Plant
RTF450M Modular Impact Crushing Plant.jpg

RTF450M Modular Impact Crushing Plant

The Runtianzhike modular counterattack crushing station has a compact structure and integrated design, with a small construction area. The crushing host adopts new manufacturing technology and a unique structural design, resulting in a higher crushing ratio stronger crushing capacity, and finished products that are cubical with no tension or cracks. The particle shape is good, and the size of the discharge particle can be adjusted by hydraulic pressure, with diversified crushing specifications. It has a low investment cost and good economy.

    Contact us
    product details
    product description

    Product Parameters

    RTF450M Modular Impact Crushing Plant
    Feeding Device Max.feeding Size  700mm
    Hopper Volume 6m3
    Vibrating Feeder Vibrating Motor Power 2*5.5kW
    Crusher Crusher Model Np1415
    Crusher Motor Power  280kW
    Main Conveying Beit Belt Width  B1000mm
    Power 15kW
    Mixed Material Conveying Belt Belt Width  B1000mm
    Power  11kW
    Returned Material Conveying Belt Belt Width  B650mm
    Power  5.5kW
    Transmission Conveying Belt Belt Width B500mm
    Power 3kW
    Vibrating screen Number of Sieve Layers 2
    Screen Mesh Srea  6000mm*1800mm
    Whole Machine Total Power 364kW
    Total Weight  62t
    Working Mode  External Power Supply
    Working Dimension  21mx10mx5.3m
    Transportation Dimension  Disassembly & Shipping

    Product characteristics

    01

    Strong Crushing Host

    RTPF series crushing machine perfect combination of heavy rotor high wear-resistant material, and reasonable crushing chamber design,significantly improve production capacity and product grain quality, reduce wear costs; Equipped with fully hydraulic counter plate discharge port adjustment device, more convenient operation.

    02

    Efficient Pre-screening Device

    By processing the raw material through the pre-screening device. the sticky material can be excluded directly through the conveyor, and the medium-sized material can be sent directly to the conveyor to increase the output of the equipment.

    03

    Independent Control System

    The control system has an independent box structure and can be equipped with air conditioning and monitoring systems which greatly reduces the influence of dust, temperature, water and other unfavorable factors on the control system.

    04

    Stable host rack

    The host rack is suitable for heavy design, using first-class steel, solid and reliable.

    05

    Easy Maintenance

    There is a safety observation platform for the silo and main engine，which can make the maintenance and overhaul more convenient.

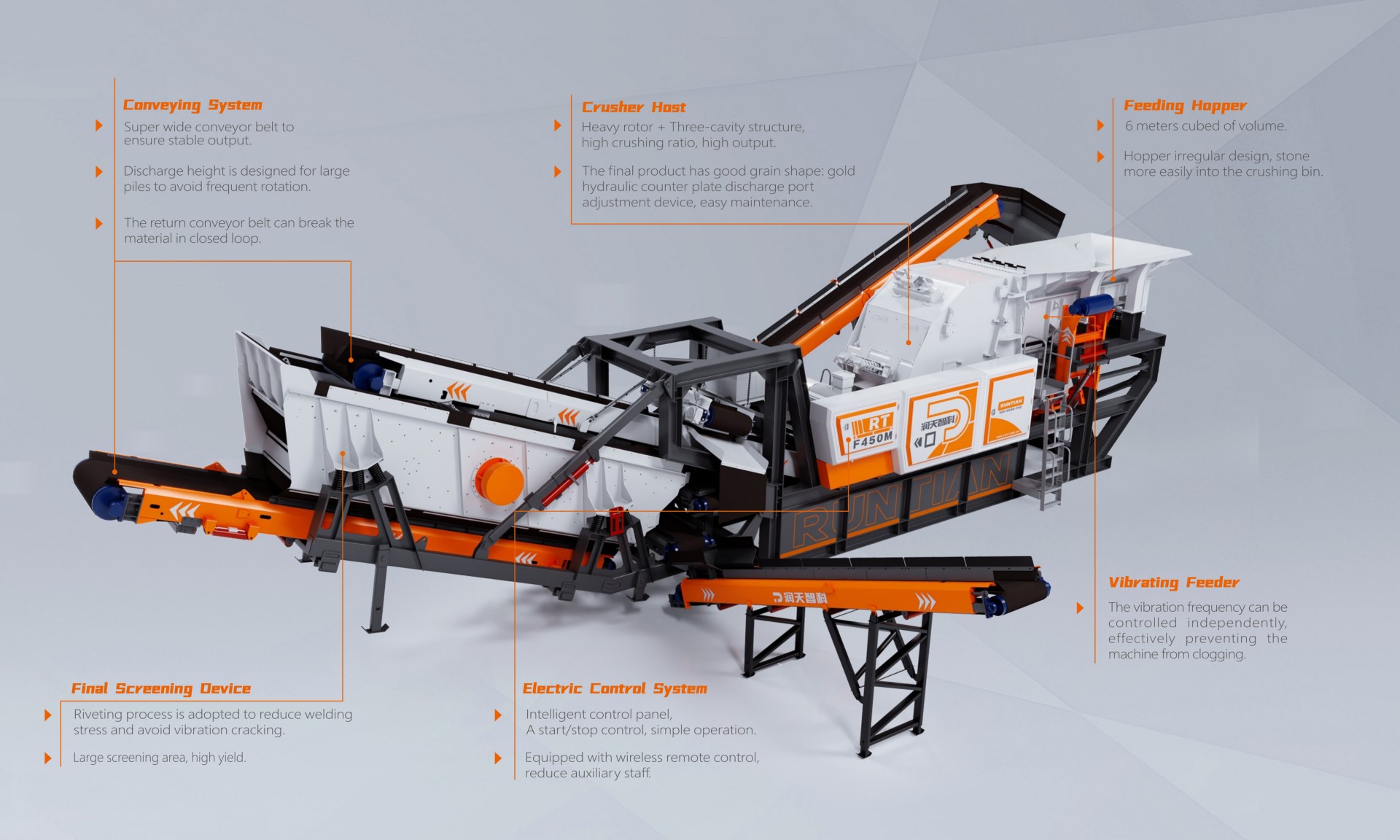

    Function module

    RTF450M

    01

    Conveying System

    Super wide conveyor belt to ensure stable output.
    Discharge height is designed for large piles to avoid frequent material transferring.
    The return conveyor belt can break the material in closed & cyclic loop.

    02

    Crusher Host

    Heavy rotor + double cavity structure high crushing ratio, high output. Particle shape.
    The final product has good grain shape: full hydraulic counter plate discharge port adjustment device, easy maintenance.

    03

    Final Screening Device

    Riveting process is adopted to reduce welding stress and avoid vibration cracking. Side vibrating motor driving, avoid power loss easy maintenance.
    Large screening area, high yield.

    04

    Electric Control System

    Intelligent control panel One-key start/stop control, simple operation.
    Equipped with wireless remote control reducing auxiliary staff.

    05

    Vibrating Feeder

    The vibration frequency can be controlled independently, effectively prevent the machine from jamming.

    06

    Feeding Hopper

    5 m3 cubed of volume.
    Hopper irregular design, stone more easily into the crushing bin.
