RTF260M Modular Counterattack Crushing and Screening Integrated Machine
RTF260M Modular Counterattack Crushing and Screening Integrated Machine.jpg

RTF260M Modular Counterattack Crushing and Screening Integrated Machine

The modular impact crushing and screening station of Runtian Zhike adopts an integrated design concept, equipped with the NP1213 Metso version of the impact crusher, with strong processing capacity, large crushing ratio, uniform grading, and good product particle shape; The unique three-layer screening design can directly screen out various specifications of finished materials, with an effective screening area of 9ml, providing strong guarantees for equipment production capacity and finished product screening purity, The economy is very good, greatly reducing the investment cost of customers.

    Contact us
    product details
    product description

    Product Parameters

    RTF260M Modular  Counterattack Crushing and screening Integrated Machine
    Feeding Device Max.feeding Size                    600mm
    Hopper Volume                          5m³
    Vibrating Feeder Vibrating Motor Power             2*5.5kW
    Crusher Crusher Model                        Np1213
    Crusher Motor Power                 250kW
    Main Conveying Belt Belt Width                        B1000mm
    Power                                  15kW
    Mixed Materia Conveying Belt Belt Width                        B1000mm
    Power                                  11kW
    Retuned Material Conveying Belt Belt Width                         B650mm
    Power                                 5.5kW
    Transmission Conveyng Belt Belt Width                         B500mm
    Power                                   3kW
    Vibrating screen Number of Sieve Layers                    3
    Sreen Mesh Srea          5000mm*1800mm
    Whole Machine Total Power                          330kW
    Total Weight                            55t
    Working Mode             External Power Supply
    Working Dimension       19.2m*14.7m*4.8m
    Transportation Dimension   Disassembly &Shipping

    Characteristics of The Entire Machine

    Adopting an integrated design concept, crushing, screening, electrical, and hydraulic systems are integrated into one set, with a compact structure, strong functionality, with more convenient transportation, and higher economic benefits.

    01

    Strong Crushing Host

    Ultra heavy counterattack rotor, with good crushing effect and large output, adopts high wear-resistant materials and deep cavity design, significantly improving equipment processing capacity while reducing wear costs; Equipped with a fully hydraulic discharge port adjustment device, easy to operate.

    02

    Efficient Pre-screening Device

    The pre-screening device can effectively remove viscous materials from raw materials and directly screen the crushed particle size materials onto the conveyor, effectively improving production capacity.

    03

    Unique Screening System

    Adopting a three-layer sieve for screening, the crushed materials have diverse specifications; The vibrating screen has a large effective screening area, high efficiency and stability, Hydraulic lifting is possible, leaving enough space for maintenance and replacement of the screen.

    04

    Stable Host Rack

    The frame is designed to be heavy-duty and made of first-class steel which is solid, stable, and reliable.

    05

    Easy Maintenance

    There is a safety observation platform around the equipment, making maintenance and upkeep more convenient.

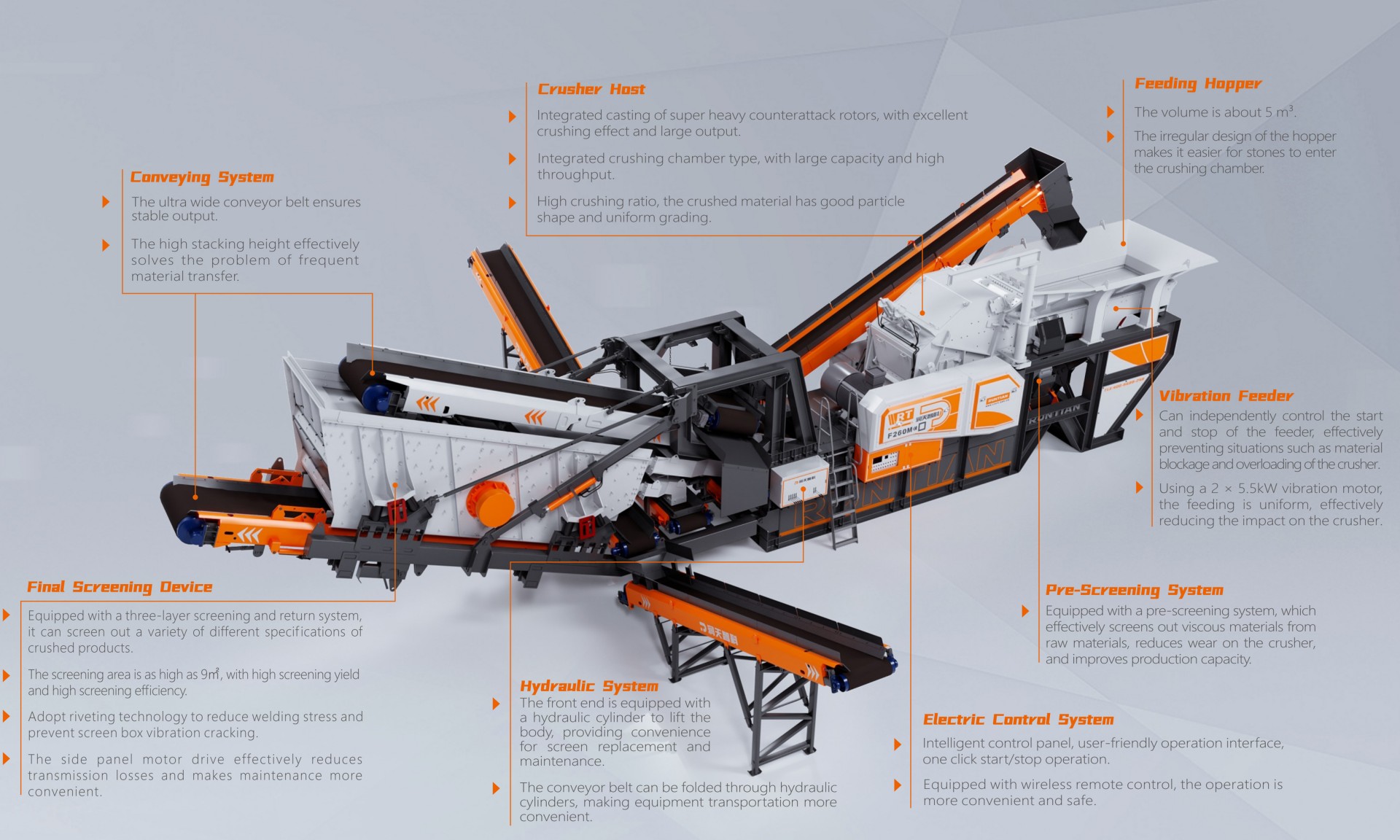

    Function module

    RTF260M-1

    product detail

    1. Crusher Host

    ● Integrated casting of super heavy counterattack rotors, with excellent crushing effect and large output.

    ● Integrated crushing chamber type, with large capacity and high throughput.

    ● High crushing ratio, the crushed material has good particleshape and uniform grading

    2. Conveying System

    ● The ultra wide conveyor belt ensures stable output

    ● The high stacking height effectively solves the problem of frequent material transfer.

    3. Final Screening Oevice

    ● Equipped with a three-layer screening and return system,it can screen out a variety of crushed products.

    ● The screening area is as high as 9m3, with high screening yield and high screening efficiency.

    ● Adopt riveting technology to reduce welding stress and prevent screen box vibration cracking.

    ● The side panel motor drive effectively reduces transmission losses and makes maintenance more convenient.

    4. Hydraulic System

    ● The front end is equipped with hydraulic cylinder to lift the body,providing convenience for screen replacement and maintenance.

    ● The conveyor belt can be folded through hydraulic cylinders, making equipment transportation more convenient.

    5. Feeding Hopper

    ● The volume is about 5 m3

    ● The irregular design of the hopper makes it easier for stones to enter the crushing chamber.

    6. Vibration Feeder

    ● Can independently control the star and stop of the feeder, effectively preventing situations such as material blockage and overloading of the crusher.

    ● Using a 2 x 5.5kw vibration motothe feeding is uniform, effectively reducing the impact on the crusher.

    7. Pre-screening system

    ● Equipped with a pre-screening system, which effectively screens out viscous materials from raw materials, reduces wear on the crusher, and improves production capacity.

    8. Electric control system

    ● Intelligent control panel, user-friendly operation interface one click start/stop operation.

    ● Equipped with wireless remote control, the operation is more convenient and safe.
