RT300CH Crawler Mobile Cone Crushing Plant
RT300CH Crawler Mobile Cone Crushing Plant.jpg

RT300CH Crawler Mobile Cone Crushing Plant

RT300CH is a diesel electric hybrid power driven tracked mobile cone crushing plant, suitable for secondary crushing in various applications, even under extremely cold conditions (working environment temperature -40℃ to 40℃, it can still ensure normal operation. The practicality of diesel electric hybrid power ensures maximum normal operating time, especially under power limited conditions. Each component adopts modular design to facilitate continuous product upgrades and meet changing market demands.

    Contact us
    product details
    product description

    Product characteristics

    New Generation Diesel Electric Drive

    There are two driving modes to choose from, diesel and electric, to meet the requirements of different working conditions.

    Convenient Maintenance and Upkeep

    All components are very easy to access, enabling fast and convenient services

    Advanced Control System

    Intuitive Operating Philosophy

    Adopting wireless remote control and local touch screen dual control mode, making operation more convenient.

    Continuous Feeding system (CFS)

    The feeding system with independent frequency conversion control can adjust the feeding speed according to the host material level, further improving production capacity.

    Fearless of Severe Cold Challenges Suitable for Harsh Environments

    Even in extremely cold conditions, it can easily handle work and has a wider range of applications.

    Efficient crusher

    The multi cylinder crusher adopts large eccentricity, high-frequency swing, and laminated crushing to ensure a larger crushing ratio, higher output,and better particle shape.

    Product Parameters

    RT300CH Crawler Mobile Cone Crushing Plant
    Feeding Device Max.feeding Size                   210mm
    Feeding Height                    3000mm
    Hopper Volume                          3m³
    Feedng Capacity                     350t/h
    Crusher Crusher Model                       HP300
    Crusher Motor Power                250kW
    Main Conveying Belt Belt Width                         B1000mm
    Power                                  11kW
    Mixed Material Corweying Belt Belt Width                        B1000mm
    Power                                 7.5kW
    Returned Materia Conveying Belt Belt Width                          B650mm
    Power                                 5.5kW
    Transmission Conveying Belt Belt Width                          B500mm
    Power                                  3kW
    Power Device Motor Power                         450kW
    Whole Machine Total Power                          321kW
    Total Weight                           55t
    Working Mode                        Hybrid
    Working Dimension       18.1m×4.2m×5.2m
    Transportation Dimension 19.0m×4.2m×3.8m

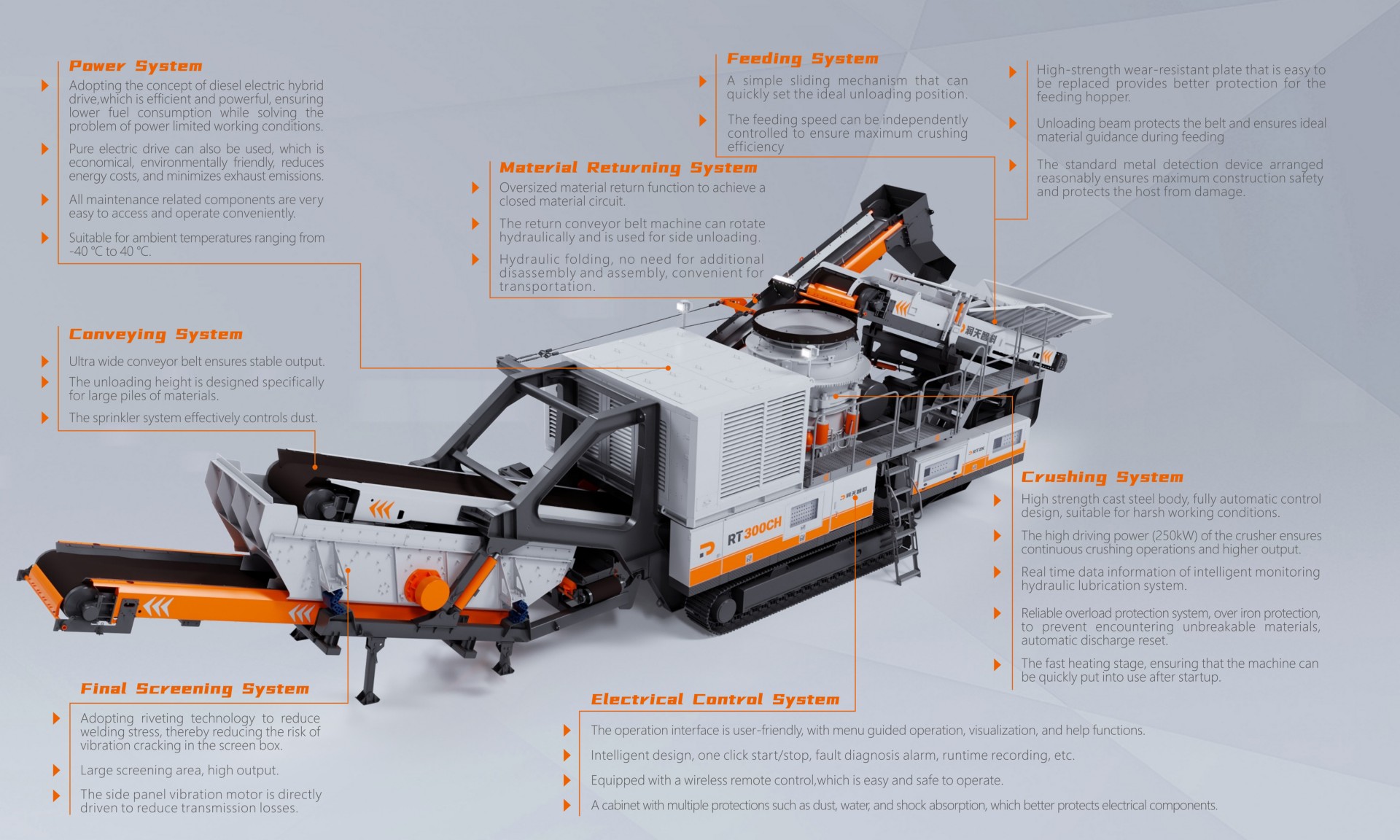

    Product characteristics

    01

    Power System

    Adopting the concept of diesel electric hybrid drive, which is efficient and powerful, ensuring lower fuel consumption while solving the problem of power limited working conditions.
    Pure electric drive can also be used, which is energy costs and minimizes exhaust emissions.
    All maintenance related components are very easy to access and operate conveniently.
    Suitable for ambient temperatures ranging from -40℃to 40℃.

    02

    Feeding system

    A simple sliding mechanism that can quickly set the ideal unloading position.
    The feeding speed can be independently controlled the ensure maximum crushing efficiency.
    High-strength wear-resistant plate that is easy to be replaced provides better protection for the feeding hopper.
    Unloading beam protect the belt and ensures ideal material guidance during feeding.
    The standard metal detection device arranged reasonably ensures maximum construction safety and protects the host from damage.

    03

    Material Returning system

    Oversized material return function to achieve a closed material circuit.
    The return conveyor belt machine can rotate hydraulically and is used for side unloading.
    Hydraulic folding, no need for additional disassembly and assembly, convenient for transportation.

    04

    Conveying System

    Ultra wide conveyor belt ensures stable output.
    The unloading height is designed specifically for large piles of materials.
    The sprinkler system effectively controls dust.

    05

    Final Screening system

    Adopting riveting technology to reduce welding stress, thereby reducing the risk of vibration cracking in the screen box.
    Large screening area, high output.
    The side panel vibration motor is directly driven to reduce transmission losses.

    06

    Crushing system

    High strength cast steel body fully automatic control design, suitable for harsh working conditions.
    The high driving power(250kw)of the crusher ensures continuous crushing operations and higher output.
    Real time data information of intelligent monitoring hydraulic lubrication system.
    Reliable overload protection system, over iron protection, to prevent encountering unbreakable materials automatic discharge reset.
    The fast heating stage, ensuring that the machine can be quickly put into use after startup.

    07

    Electrical Control System

    The operation interface is user- friendly, with menu guided operation, visualization, and help functions.
    Intelligent design, one click start/stop, fault diagnosis alarm, runtime recording, etc.
    Equipped with a wireless remote control, which is easy and safe to operate.
    A cabinet with multiple protections such as dust, water and shock absorption. which better protects electrical components.

    Function module

    RT300CH
