RT300CE Crawler Mobile Cone Crushing Plant
RT300CE Crawler Mobile Cone Crushing Plant.jpg

RT300CE Crawler Mobile Cone Crushing Plant

Runtian Crawler Mobile Cone Crushing Station is equipped with the world's most widely used and sold multi-cylinder hydraulic cone crusher which integrates the latest research achievements in crushing technology, hydraulic technology, computer technology and manufacturing technology. Different chamber shapes can be selected according to the material processing needs. The equipment is widely used in the production of sand & gravel aggregate and for environmental protection crushing.

    Contact us
    product details
    product description

    Product Parameters

    Feeding Device Max.feeding Size                  210mm
    Feeding Height                   3000mm
    Hopper Volume                        3m³
    Feeding Capacity                  350t/h
    Crusher Crusher Model                     HP300
    Crusher Motor Power               250kW
    Main Conveying Belt Belt Width                      B1000mm
    Power                                11kW
    Mixed Material Conveying Belt Belt Width                      B1000mm
    Power                             7.5kW
    Returned Material Conveying Belt Belt Width                      B650mm
    Power                              5.5kW
    Transmission  Conveying Belt Belt Width                      B500mm
    Power                               3kW
    Whole Machine Total Power                        321kW
    Total Weight                          55t
    Working Mode          External Power Supply
    Working Dimension         16.4mx4mx5.1m
    Transportation Dimension  18.3mx4mx3.9m

    Product characteristics

    01

    Superior Performance

    The feeding position is infinitely adjustable, and the crushing efficiency and stability of the mainframe could be guaranteed. Integrated frequency conversion system is used, and the requirements for dust-proof heat dissipation, vibration isolation and waterproof are fully considered to ensure the reliable operation of the circuit system. Intelligent multi-cylinder crusher with hydraulically adjustable discharge outlet, automatic chamber cleaning clearing, and overload protection functions. The crusher is equipped with independent hydraulic and lubrication modules with high efficiency and low energy consumption.

    02

    Intelligent Control and Cost Reduction

    The mainframe is equipped with automatic control system and fully automatic crushing process control, which could greatly reduce the time of equipment maintenance while ensuring high production. and wireless remote control can reduce the number of equipment operators. Intelligent and automated electrical control system is provided, including such functions as self-diagnosis and safety interlocks, to ensure the safety and reliability of the equipment.

    03

    Equipped with New Cone Crusher

    The core unit is the cone crusher developed with new technologies, which integrates mechanical, hydraulic, electrical and intelligent control technologies.

    04

    Green and Environment Friendly

    The joint operation of diesel engine and generator could provide more functions, and reduce energy consumption.The crushing chamber of the equipment has a sealing design to reduce dust pollution.

    05

    Fearless of Harsh Conditions

    The traveling system is controlled by load-sensitive pump+proportional valve group, which can realize automatic deviation correction and step-less speed change when traveling.

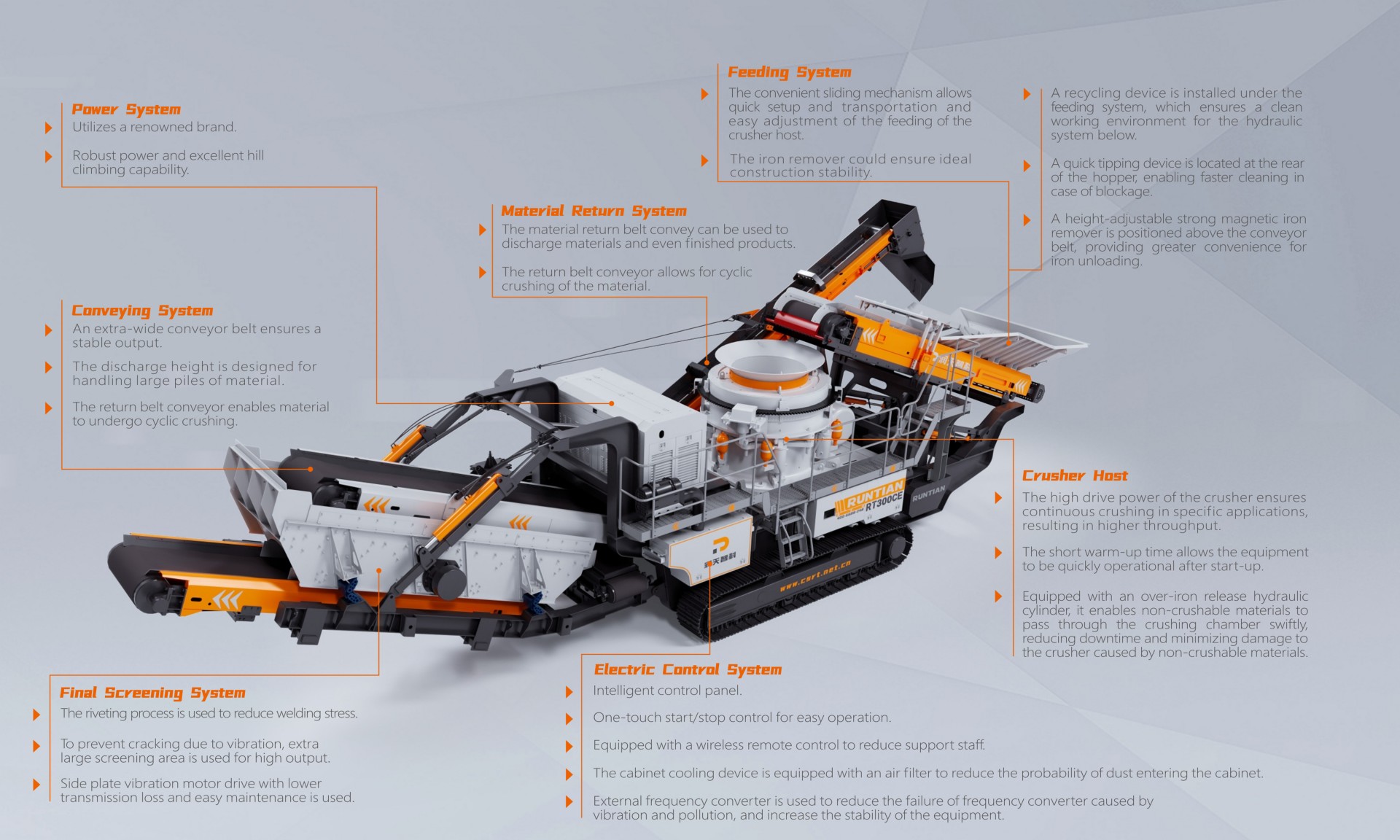

    Function module

    RT300CE-1

    01

    Power System

    Utilizes a renowned foreign brand.
    Robust power and excellent hill climbing capability.

    02

    Conveying System

    An extra-wide conveyor belt ensures a stable output.
    The discharge height is designed for handling large piles of material.
    The return belt conveyor enables material to under go cyclic crushing.

    03

    Material Return System

    The material return belt convey can be used to discharge materials and even finished products.
    The return belt conveyor allows for cyclic crushing of the material.

    04

    Feeding System

    The convenient sliding mechanism allows quick set up and transportation and easy adjustment of the feeding of the crusher host.
    The iron remover could ensure ideal construction stability.
    A recycling device is installed under the feeding system, which ensures a clean working environment for the hydraulic system below.
    A quick tipping device is located at the rear of the hopper enabling faster cleaning in case of blockage.
    A height-adjustable strong magnetic iron remover is positioned above the conveyor belt, providing greater convenience for iron unloading.

    05

    Final Screening System

    The riveting process is used to reduce welding stress.
    To prevent cracking due to vibration, extra large screening area is used for high output.
    Side plate vibration motor drive with lower transmission loss and easy maintenance is used.

    06

    Electric Control System

    Intelligent control panel.
    One-key start/stop control for easy operation.
    Equipped with a wireless remote control to reduce support staff.
    The cabinet cooling device is equipped with an air filter to reduce the probability of dust entering the cabinet.
    External frequency converter is used to reduce the failure of frequency converter caused by vibration and pollution, and increase the stability of the equipment.

    07

    Crusher Host

    The high drive power of the crusher ensures continuous crushing in specific applications, resulting in higher throughput.
    The short warm-up time allows the equipment to be quickly operational after start-up.
    Equipped with an over-iron release hydraulic cylinder it enables uncrushable materials to pass through the crushing chamber swiftly reducing downtime and minimizing damage to the crusher caused by uncrushable materials.
