RT116JH Crawler Mobile Jaw Crushing Plant
RT116JH Crawler Mobile Jaw Crushing Plant.jpg

RT116JH Crawler Mobile Jaw Crushing Plant

RT116JH is a diesel & electric hybrid power driven crawler type mobile jaw crusher designed specifically for primary crushing of hard rocks and production of recycled aggregates. Even under extremely cold working conditions (working environment temperature -40 ℃ to 40 ℃), normal operation can still be guaranteed. The practicality of diesel & electric hybrid power ensures maximum normal operating time, especially under power limited conditions, All components are designed with modularity to facilitate continuous product upgrades and meet changing market demands.

    Contact us
    product details
    product description

    Extreme Cold Type

    1. Q355D and Q355E plates are used for all important structural components. Q355 steel plate has good low temperature resistance,can maintain good toughness and ductility in a low temperature environment of -40 ℃, which gives it a wide range of application prospects in cold regions or situations where it is needed to withstand low-temperature impact loads.

    2. A heater is added to the electrical section, all cables inside the cabinet are changed to to low-temperature resistant cables, and0355ME cold resistant steel plate is used for the cabinet body.

    3. The power pack is made of Q355ME cold resistant steel plate. Motor: low-temperature motor; Cable: low temperature cable; Sealing element: Cold resistant sealing element; Pressure gauge: Cold resistant silicone oil pressure gauge; liquid level gauge: Cold resistant acrylic; Radiator plate: resistant to low temperature, hydraulic oil tank with heater added, hydraulic and pipeline with heat tracing belt added, electrical cabinet with box heater added, engine with water jacket preheating and diesel preheating added.

    Product Parameters

    Feeding Device Max.feeding Size                     700mm
    Feeding Height                      4100mm
    Hopper Volume                          9m³
    Feeding Capacity                170-310t/h
    Vibrating Feeder Vibrating Motor Power              2*7.5kW
    Crusher Crusher Model                         C116
    Crusher Motor Power                  132kW
    De-Soiling Conveying Belt Belt Width                          B650mm
    Power                                   4kW
    Main Conveying Belt Belt Width                         B1000mm
    Power                                 15kW
    Power Device Motor Power                           250kW
    Motor                            Mecc Alte
    Whole Machine Crusher Driving Mode            Variable Frequency Drive
    Working Mode                        Hybrid
    Total Power                          172kW
    Total Weight                           54t
    Working Dimension          16.5m*4.5m*4.7m
    Transportation Dimension   14.9m*3.3m*3.8m

    Product characteristics

    01

    New Generation Diesel electric Drive

    Two driving modes to choose from, diesel and electric, to meet the requirements of different working conditions.

    02

    Convenient Maintenance and Upkeep

    All components are very easy to access, enabling fast and convenient services.

    03

    Advanced control system, intuitive Operating Philosophy

    Adopting wireless remote control and local touch screen dual control mode, making operation more convenient.

    04

    Fearless of Severe cold challenges, Suitable for Harsh Environments

    It can easily handle work even in extremely cold conditions, which has a wider range of applications.

    05

    Powerful crusher

    High strength prefabricated structure, powerful and reliable.deep w-shaped crushing chamber design, large eccentricity ensuring excellent meshing angle and large stroke, achieving efficient crushing of hard rock.

    06

    Continuous Feeding system(CFS)

    The feeding system with independent frequency conversion control can adjust the feeding speed according to the host material level, further improving production capacity.

    Function module

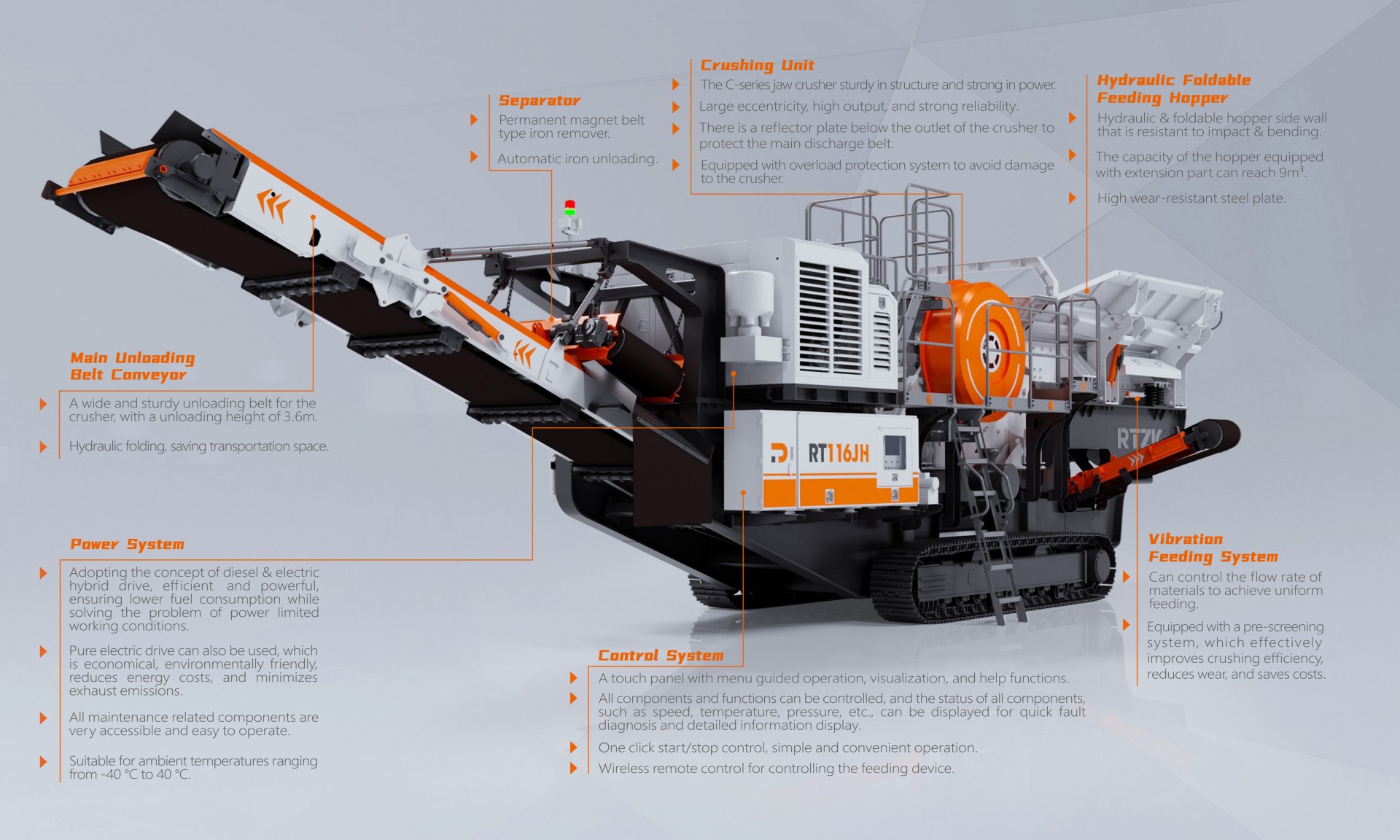

    RT116JH-1

    01

    Main Unloading Belt conveyor

    A wide and sturdy unloading belt for the crusher with a unloading height of 3.6m.
    Hydraulic folding, saving transportation space.

    02

    Power System

    Adopting the concept of diesel & electric hybrid drive, efficient and powerful ensuring lower fuel consumption while solving the problem of power limited working conditions.
    Pure electric drive can also be used, which is economical, environmentally friendly reduces energy costs, and minimizes exhaust emissions.
    All maintenance related components are very accessible and easy to operate.
    Suitable for ambient temperatures ranging from -40 ℃ to 40℃.

    03

    Separator

    Permanent magnet belt type iron remover.
    Automatic iron unloading.

    04

    Crushing Unit

    The C-series jaw crusher sturdy in structure and strong in power.
    Large eccentricity, high output, and strong reliability.
    There is a reflector plate below the outlet of the crusher to protect the main discharge belt.
    Equipped with overload protection system to avoid damage to the crusher.

    05

    Hydraulic Foldable Feeding Hopper

    Hydraulic & foldable hopper side wail that is resistant to impact & bending.
    The capacity of the hopper equipped with extension part can reach 9m³.
    High wear-resistant steel plate.

    06

    Control System

    A touch panel with menu guided operation, visualization, and help functions.
    All components and functions can be controlled, and the status of all components.such as speed, temperature, pressure, etc., can be displayed for quick fault diagnosis and detailed information display.
    One click start/stop control, simple and convenient operation.
    Wireless remote control for controlling the feeding device.

    07

    Vibration Feeding System

    Can control the flow rate of materials to achieve uniform feeding.
    Equipped with a pre-screening system, which effectively improves crushing efficiency reduces wear, and saves costs.
