HZS Series Bucket-Lifting Type Concrete Mixing Plant
HZS Series Bucket-Lifting Type Concrete Mixing Plant (1).jpg

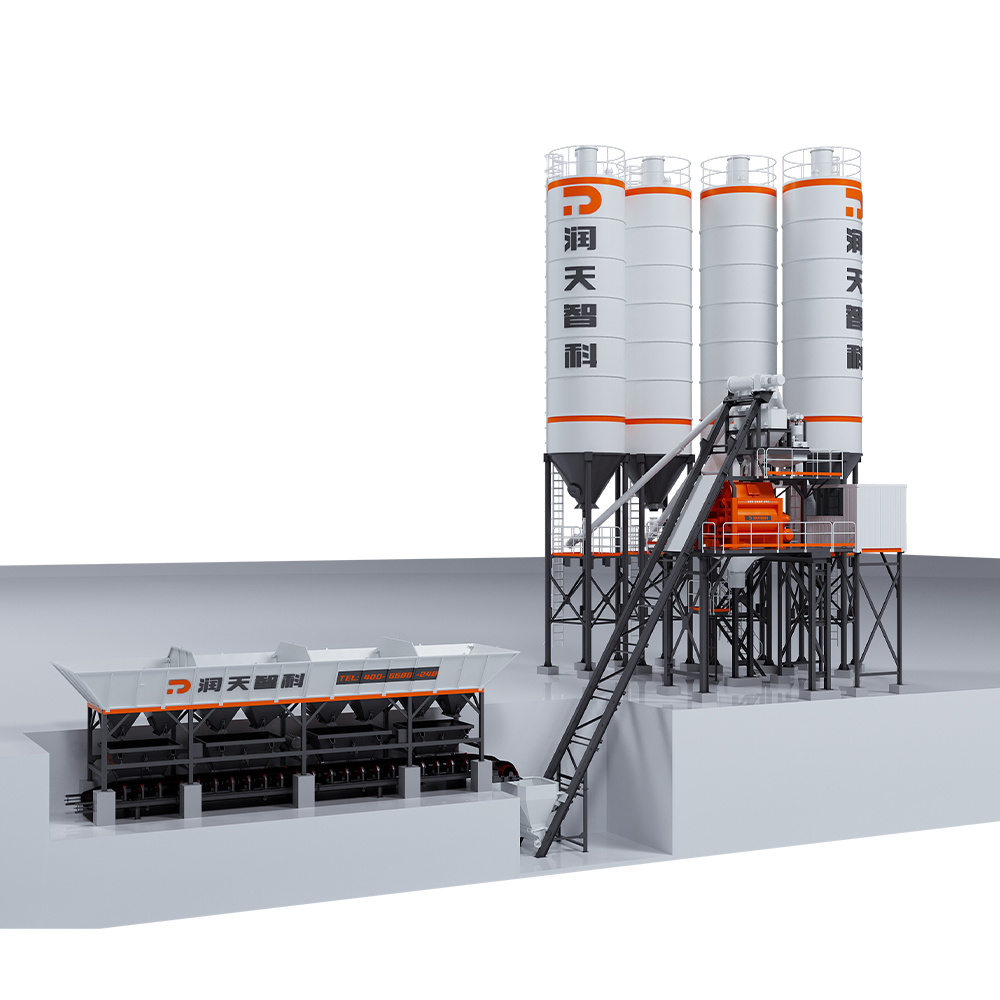

HZS Series Bucket-Lifting Type Concrete Mixing Plant (2).jpg

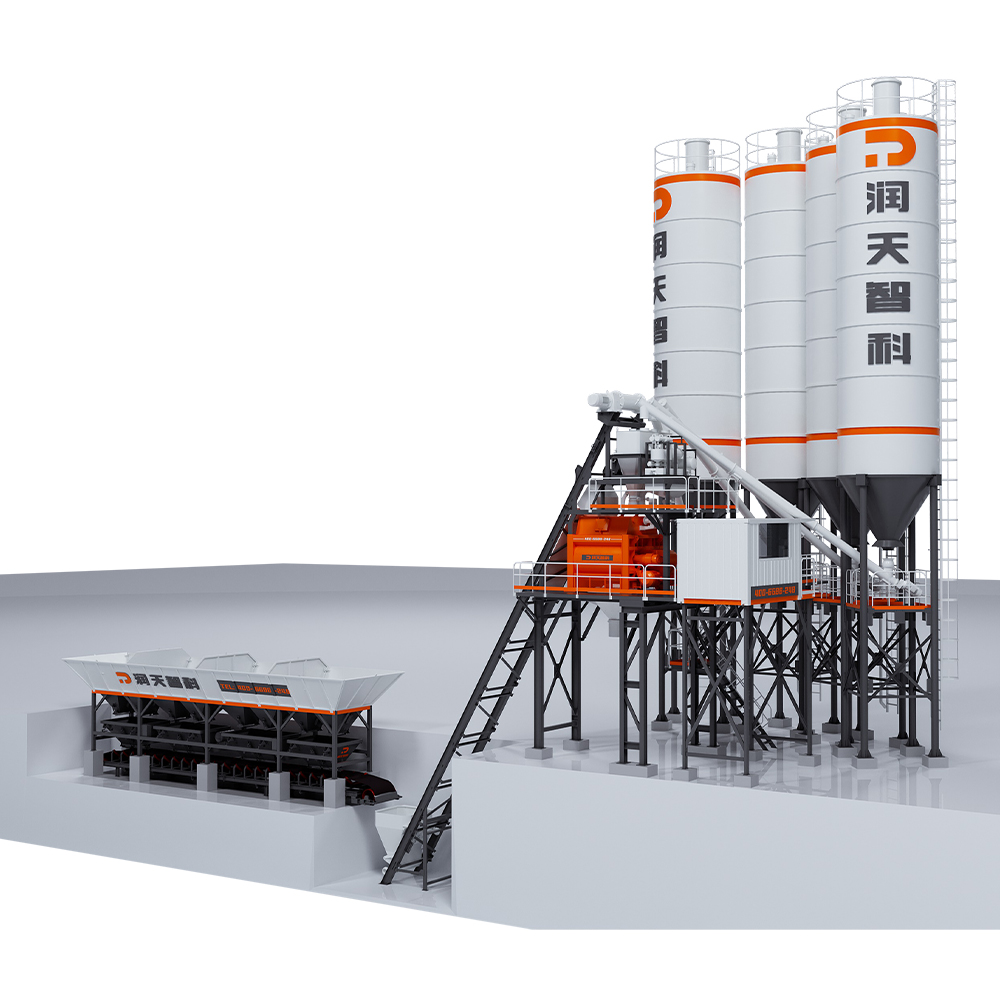

HZS Series Bucket-Lifting Type Concrete Mixing Plant (3).jpg

HZS Series Bucket-Lifting Type Concrete Mixing Plant

RTZK Bucket-lifting Type Concrete Mixing Plant has significant features such as integrated design, environmental protection and energy conservation, safety and reliable, to achieve precise dosing, and stable performance. It is widely used in the construction of highways, railways, municipal, and urban projects.

    Contact us
    product details
    product description

    Product Parameters

    Parameter Unit Model
    HZS60T HZS90T HZS120T HZS180T
    Theoretical productivity m³/h 60 90 120 180
    Model of mixer / JS1000 JS1500 JS2000 JS3000
    Power of mixer kW 2×22 2×30 2×37 2×55
    Recycling period S 60 60 60 60
    Mixer L 1000 1500 2000 3000
    Maximum of aggregate mm ≤80 ≤80 ≤80 ≤80
    Capacity of powder silo t 2×100 3×100 4x100 4×150

    Batching capacity of the batching station

    		 L 1600 2400 3200 4800
    Capacity of aggregate silo m³ 3×10 4×15 4×20 4×25
    Material discharging height m 4.2 4.2 4.2 4.2
    Installed power kW 120 150 190 240
    Maximum capacity of screw conveyor t/h 40 40 80 80
    Aggregate weighing range/accuracy kg 1500±2% 2000±2% 2000±2% 3000±2%
    Cement weighing range/accuracy kg 600±1% 800±1% 1200±1% 1800±1%
    Coal powder dosing range/accuracy kg 300±1% 400±1% 600±1% 800±1%
    Water dosing range/accuracy kg 400±1% 500±1% 600±1% 800±1%
    Addtive dosing range/accuracy kg 30±1% 30±1% 30±1% 50±1%

    description2

    PRODUCT CHARACTERISTICS

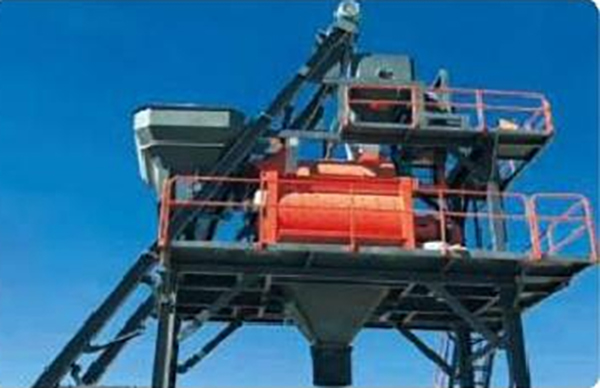

    HZS Series Bucket-Lifting Type Concrete Mixing Plant (4)

    Compact structure, efficient production: Modular structure design, small area covering, flexible placement as per actual site condition, multi-directional discharging, each optimized components are with equal efficiency with belt conveyors transportation.

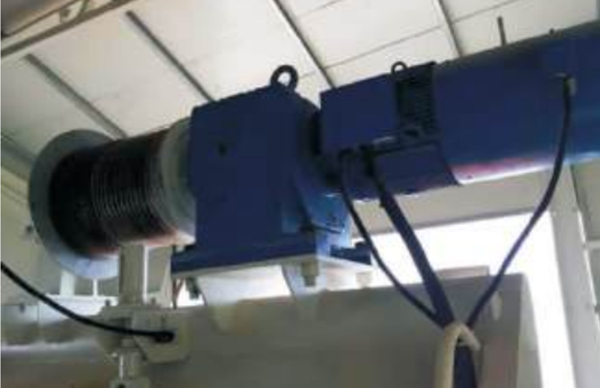

    HZS Series Bucket-Lifting Type Concrete Mixing Plant (5)

    The optimized design of the lifting bucket has a large volume, smooth feeding, and a forward center of gravity, making it more stable; Using dynamic lifting points for material loading, ensuring smooth lifting without bias load; Loose rope protection limit, no reverse rotation, safe and worry free; The lifting motor adopts high-power electromagnetic braking motor, which is stable and reliable.

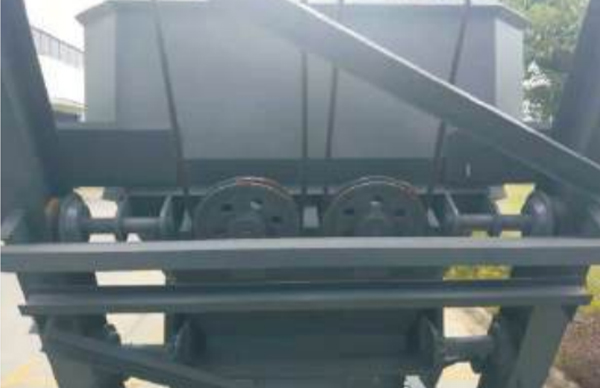

    HZS Series Bucket-Lifting Type Concrete Mixing Plant (6)

    Wear parts are reliable & durable: tempered H-type steel rails avoids rail deformation. The lifting bucket is protected by intelligent devices such as sensors and travel switches during operation, making it safe and reliable. The double wear-resistant pulley and double steel wire rope design extends the service life of vulnerable parts such as the pulley and steel wire rope to over 50,000 m3bucket never drops.

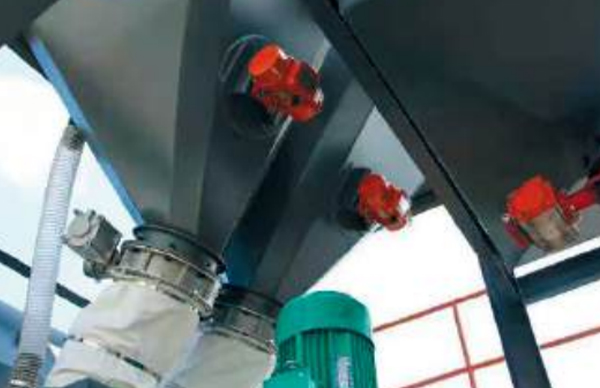

    HZS Series Bucket-Lifting Type Concrete Mixing Plant (7)

    Accurate dosing,the powder scale body adopts an octagonal design, with good rigidity and smooth unloading; Independent and free scale frame, with pneumatic self balancing technology to prevent the occurrence of supporting and pulling scales. All materials are measured with coarse and fine precision, with high accuracy; Each weighing hopper has an adaptive intelligent weighing function, which makes it more accurate to use; The scale bucket has a large capacity and is suitable for more proportioning requirements.
